Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
• Samme bakpanel som ATEM Mini med tilleggsknapper og programvarefunksjoner
• Stream video opp til 1080p HD
• Knapper for quick stream, on-air og opptak
• Hardware encoder slik at det ikke er behov for ytterligere streamingprogramvare
• Kontroller og konfigurer tidskode, stream-status
• Full støtte- og kontrollfunksjoner for BMPCC 6K og 4K kameraer
• Samtidig USB-opptak
• Integrasjon med Multidock for veksling av live harddisk
• Tilpass avanserte innstillinger med XML-filer
• Multivisning av programvare med forhåndsvisning av program, grafikk, poststatus, på luftstatus, lydmålere
• Programmer forhåndsvisningsknapper for inngang og utgang
• Tally lyskontroll for BMPCC 6K / 4K kameraer
• Automatisk tidskodesynkronisering for alle kameraer
Similar to its predecessor the ATEM Mini, the ATEM Mini Pro from
Blackmagic Design is a four-input live production switcher with an
integrated control panel designed for multi-camera live streaming up to
HD video to the internet or broadcast applications from gaming consoles,
corporate computer streams, or HD cameras. Along with the software
control update, the Mini Pro builds on the Mini with features such as
live stream data rate and status information, a built-in hardware
encoder, simultaneous recording to USB drives, drive hot swapping with
the Blackmagic Multidock, an added record and stream buttons, stream
caching, a timecode generator, program preview multiview, tally support,
and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to
utilize as your broadcast sources.
The ATEM Mini Pro retains the same rear panel setup with four HDMI
inputs are available on the rear of the chassis and they input up to
1080p HD video. There is also an HDMI output for a projector or external
monitor, a USB Type-C output as for streaming HD video to a computer,
and an RJ45 10/100/1000 Ethernet port for streaming video through your
computer, system management, remote control, and upgrades. You can
adjust frame rate depending on the quality of your stream, and there is
no need for additional streaming software because the Pro includes a
built-in hardware encoder.
The updated ATEM Software Control Panel is used for control and
configuration of the ATEM Mini Pro via USB or Ethernet, and it allows
you to monitor the data rate, audio meters, configuration, and status of
your live feed. The built-in color control panel has the same
configuration of DaVinci Resolve, eliminating any learning curve.
Advanced features include the ability for engineers to upload an XML
configuration file to make it easier to change all your settings at
once.

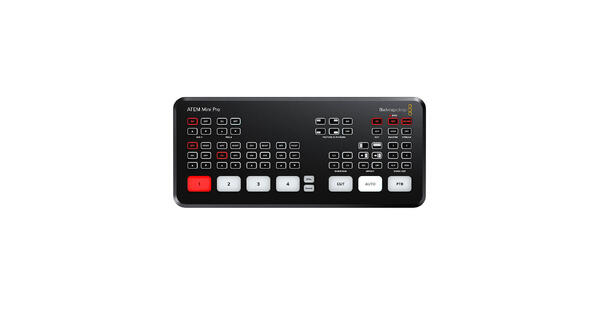

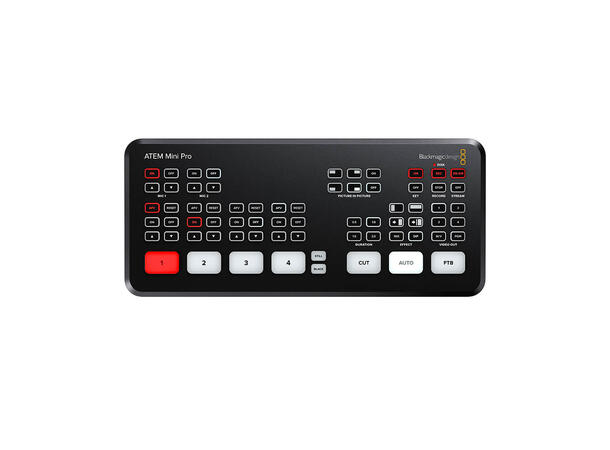

The control surface features the same easy-to-view, backlit control
buttons to enable selecting camera inputs, controlling transitions,
keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to
the right side such as a quick record button which allows you to
instantly record your live stream to the connected USB source, or by
holding it down, you can hot-swap drives when using the Blackmagic
Multidock if you need to quickly get down to editing. On Air and Stream
buttons have also been added to instantly start and stop your stream
once it is set up in software control. The added Video out out buttons
on the right side allow you to select a program preview for each source,
so you can make sure each source is ready to go for air.
The ATEM Mini Pro features the same upstream and downstream keyers,
an advanced chroma keyer, two linear/luma keyers, a DVE transition
keyer, a pattern generator, and color generators. There is also media
player support for fill and key images, which supports up to 20 stills
in PNG, TGA, BMP, JPEG, and TIFF formats.
Included:
Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
12V Power Supply with International Adapters
Control Panel Software
Specifications:
Inputs 4 x HDMI Type A
2 x 3.5 mm Stereo Analog Audio
1 x RJ45 Ethernet
Outputs 1 x HDMI
1 x USB Type-C
Video Input Formats HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs 4 x HDMI
Video Output 1 x HDMI
Audio Input 2 x 3.5 mm Stereo
Other I/O 1 x USB Type-C
1 x RJ45, Gigbit Ethernet
Video Sampling 4:2:2 YUV
Color Precision 10-Bit
Color Space Rec. 709
Color Space Conversion Hardware-Based, Real Time
Embedded Audio 2-Channel Input and Output
Audio Mixer 6-Input, 2-Channel
Media Player 1 x Player with Fill and Key
Still Image Capacity 20
Image Format Support PNG, TGA, BMP, GIF, JPEG, TIFF
Keyers 1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)
Layers Up to 5
Generators 1 x Pattern
2 x Color
DVE Transition Keyer
Monitor Resolution 1366 x 768 or Greater
Operating System Support macOS 10.13, 10.14, or Later
Windows 10
Power Input 1 x Barrel
Voltage 12 V
Power Draw 18 W
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°
Relative Humidity 0 to 90% Non-Condensing
Dimensions 9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight 19.4 oz / 550 g
